B-SERIES TERMINAL BLOCKS
Eagle Connector B-Series terminal blocks were designed to provide reliable, versatile, and cost effective wire connectors in rugged industrial equipment and commercial appliance applications. The B-Series is used as a power connection point for loads up to 85 amps. The B-Series is also used in low power applications where large wire, as large as #4 AWG, is used to minimize voltage drop.

We can print markings on individual circuits as an option in the B-Series terminal blocks.

General Specifications

Voltage Rating:  600 Volts
Current Rating:  85 Amps (76 Amps VDE logo)
Wire Range:  #18 to #4 AWG Solid or Stranded, Copper (16 mm2 VDE logo)
Temperature Range:  -30°C to 150°C
Screw Tightening Torque:  20 Inch-Pounds
Wire Strip Length:  3/8 Inch

Material Specification

Insulator:  Phenolic, Black, UL94V-O, 150°C
Connector:  .0002” (200 micro-inch) thick Matte Tin over Copper Flash over .050” thick 70/30 Brass
Screw:  1/4-28 UNF Class 2 Slotted, Headless, Domed Point Set Screw. Clear Chromate over .0001” (100 micro-inch) thick Zinc over Steel

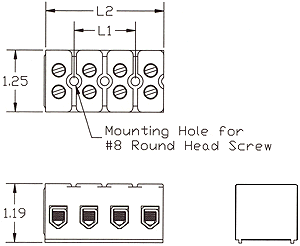

B-04 Drawing

B-04 drawing
B Series

Catalog Number L1 L2
B-02
B-03
B-04

B-05
B-06
B-07

B-08
B-09
B-10

B-11
B-12
----
.625
1.250

1.875
2.500
3.125

3.750
4.375
5.000

5.625
6.250
1.19
1.81
2.44

3.06
3.69
4.31

4.94
5.56
6.19

6.84
7.46


UL Recognized, CSA Certified, VDE Licensed
UR logo CSA logo VDE logo

Printable PDF Spec Sheet

Call us for free sample terminal blocks.
Call us to help solve your custom terminal block requirements.


847-593-8737
