F-SERIES TERMINAL BLOCKS
The Eagle Connector F-Series terminal block offers four 1/4” male quick connect tabs per circuit. The F-Series is ideal for commercial appliance applications providing safe, reliable connections yet allow quick service of appliance components. The F-Series offers a unique one piece connector design; no rivets or screws which could loosen causing heating or intermittent problems. The F-Series connector is completely enclosed by the insulator offering near dead-front safety.

The FP-Series terminal block is a printed circuit mount terminal block. The FP-Series has a redundant two pc pins per circuit for a solid mechanical mount on the printed circuit board.

As a factory option, any adjacent circuits can be bussed when more than four common quick tabs are required for any one circuit.

General Specifications - (FP & FS Series)

Voltage Rating:  300 Volts
Current Rating:  25 Amps
Temperature Range:  -30°C to 130°C

Material Specification - (FP & FS Series)

Insulator:  Thermoplastic PBT Polyester, Glass Filled, 94V-O, 130°C
Connector:  .0002” (200 micro-inch) thick Matte Tin over Copper Flash over 0.032” Thick 70/30 Brass
Screw:  Clear Chromate over .0001” (100 micro-inch) thick Zinc over Steel

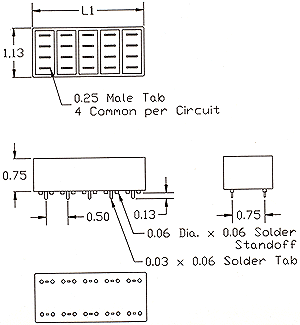

FP-05 Drawing

FP-05 drawing

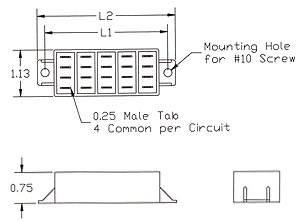

FS-05 Drawing
FS-05 drawing
FP Series

Catalog Number L1
FP-01
FP-02
FP-03

FP-04
FP-05
FP-06

FP-07
FP-08
FP-09

FP-10
FP-11
FP-12

FP-13
FP-14
0.59
1.09
1.59

2.09
2.59
3.09

3.59
4.09
4.59

5.09
5.59
6.09

6.59
7.09


FS Series

Catalog Number L1 L2
FS-01
FS-02
FS-03

FS-04
FS-05
FS-06

FS-07
FS-08
FS-09

FS-10
FS-11
FS-12
1.00
1.50
2.00

2.50
3.00
3.50

4.00
4.50
5.00

5.50
6.00
6.50
1.37
1.87
2.37

2.87
3.37
3.87

4.37
4.87
5.37

5.87
6.37
6.87


UL Recognized, CSA Certified, VDE Licensed
UR logo CSA logo VDE logo

Printable PDF Spec Sheet

Call us for free sample terminal blocks.
Call us to help solve your custom terminal block requirements.


847-593-8737
