D-SERIES TERMINAL BLOCKS
The Eagle Connector D-Series terminal block is a high current, 85 amp., yet compact sized terminal block. The D-Series is dead front, that is all live metal parts are recessed inside of the insulator block. The D-Series was designed for rugged industrial equipment and commercial appliance applications.

General Specifications

Voltage Rating:  300 Volts
Current Rating:  85 Amps
Wire Range:  #18 to #4 AWG Solid or Stranded, Copper
Temperature Range:  -30°C to 130°C
Screw Tightening Torque:  20 Inch-Pounds
Wire Strip Length:  3/8 Inch

Material Specification

Insulator:  Thermoplastic PBT Polyester, Glass Filled, 94V-O, 130°C
Connector:  .0002” (200 micro-inch) thick Matte Tin over Copper Flash over 0.050” thick 70/30 Brass
Screw:  1/4-28 Slotted, Headless, Domed Point Set Screw; Clear Chromate over .0001” (100 micro-inch) thick Zinc over Steel

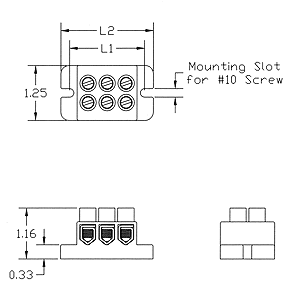

D-03 Drawing

D-03 drawing
D Series

Catalog Number L1 L2
D-02
D-03
D-11
1.27
1.69
5.27
1.70
2.11
5.83


UL Recognized, CSA Certified, VDE Licensed
UR logo CSA logo VDE logo

Printable PDF Spec Sheet

Call us for free sample terminal blocks.
