C-SERIES TERMINAL BLOCKS
Eagle Connector C-Series terminal is a power input field wiring terminal block offered for commercial appliance and industrial equipment applications. The terminal block is a one-piece, dead front connector with color coded circuits. The C-Series is rated for loads up to 85 amps and for wire as large as #4 AWG. Large 3/8 inch diameter, screwdriver entry holes allow wire connections to be made with 1/4 inch flare point screwdrivers, the most common screwdriver size.

General Specifications

Voltage Rating:  600 Volts
Current Rating:  85 Amps (76 Amps VDE logo)
Wire Range:  #18 to #4 AWG Solid or Stranded, Copper (16 mm2 VDE logo)
Temperature Range:  -30°C to 130°C
Screw Tightening Torque:  20 Inch-Pounds
Wire Strip Length:  3/8 Inch

Material Specification

Insulator:  Thermoplastic Polyester, Glass Filled, 94V-O, 130°C
Connector:  .0002” (200 micro-inch) thick Matte Tin over Copper Flash over 70/30 Brass
Screw:  Clear Chromate over .0001” (100 micro-inch) thick Zinc over Steel

Standard Colors

Body:  Black or White
Circuits:  Black, White, Red, Green, Blue, or Brown

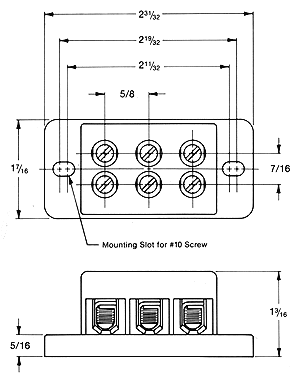

C-03 Drawing

C-03 drawing

C-03 Drawing

C-03 drawing

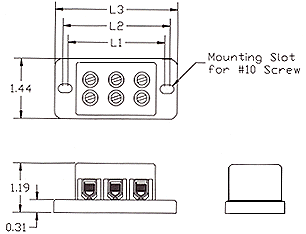

C Series

Catalog Number L1 L2 L3
C-02
C-03
C-04
2.33
2.33
2.96
2.59
2.59
3.22
2.96
2.96
3.59

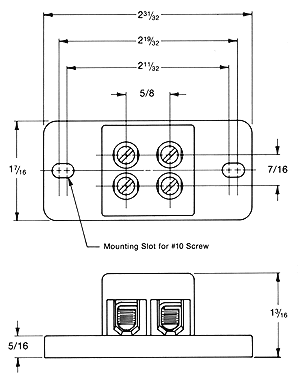

C-02 Drawing
C-02 drawing


UL Recognized, CSA Certified, VDE Licensed
UR logo CSA logo VDE logo

Printable PDF Spec Sheet

Call us for free sample terminal blocks.
Call us to help solve your custom terminal block requirements.
