G-SERIES TERMINAL BLOCKS
Eagle Connector G-Series terminal block is a power/signal field wiring terminal block offered for commercial and industrial applications. Common applications are those where field wiring is on the outside of the device and factory wiring is enclosed within the device. The G-Series is rated for loads up to 25 amps and up to 600 volts. The large screw with captive sems wire clamping washers allow easy wiring even when terminating combinations of different wire sizes. The GT-Series allows insulated use thru metal device enclosures.

General Specifications - (G & GT Series)

Voltage Rating:  600 Volts
Current Rating:  25 Amps
Wire Range:  #22 to #8 AWG Solid or Stranded Copper
Temperature Range:  -30°C to 130°C
Screw Tightening Torque:  20 Inch-Pounds
Wire Strip Length:  1/2 Inch

Material Specification - (G & GT Series)

Insulator:  Thermoplastic PBT Polyester, Glass Filled, 94V-O, 130°C
Connector:  .0002” (200 micro-inch) Thick Matte Tin over Copper Flash over 0.032” Thick 70/30 Brass
Screw:  #10-32 Slotted Screw With Captive Wire Clamp Washer; .0001” (100 micro-inch) Thick Nickel over Copper Flash over Brass
Nut:  #10-32 Square Nut; Clear Chromate over .0001” Thick Zinc over Steel

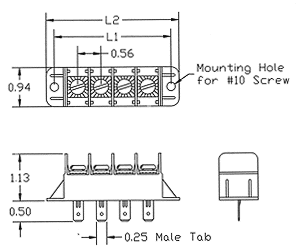

G-04 Drawing

G-04 drawing


GT-04 Drawing
GT-04 drawing
G Series

Catalog Number L1 L2
G-02
G-03
G-04

G-05
G-06
G-07

G-08
G-09
G-10

G-11
G-12
1.69
2.25
2.81

3.38
3.94
4.50

5.06
5.63
6.19

6.75
7.31
2.13
2.69
3.25

3.81
4.38
4.94

5.50
6.06
6.62

7.18
7.74


GT Series

Catalog Number L1 L2
GT-02
GT-03
GT-04

GT-05
GT-06
GT-07

GT-08
GT-09
GT-10

GT-11
GT-12
1.69
2.25
2.81

3.38
3.94
4.50

5.06
5.63
6.19

6.75
7.31
2.13
2.69
3.25

3.81
4.38
4.94

5.50
6.06
6.62

7.18
7.74


UL Recognized, CSA Certified, VDE Licensed
UR logo CSA logo VDE logo
